應(yīng)用場合/ Applications
● 主要用于電磁爐電源部分抑制噪聲 和干擾。
● Used in noise suppression, electromagnetic interference suppression and connection to the supply mains for Induction cooker.
典型線路圖/ Typical circuit

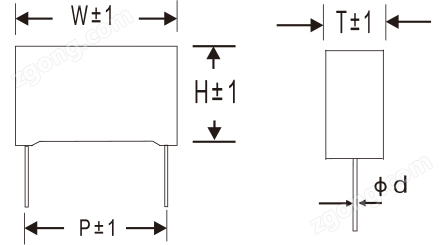

外形圖及參考尺寸/Outline drawing





性能指標/ Technical data
| 氣候類別/Climate Category | 40/105/21 |
| 適用溫度范圍/Temp. Range | -40℃~+105℃ |
| 容量范圍/Capacitance Range | 1μF~10μF |
| 額定電壓/Rated Voltage | 275V.AC |
| 容量偏差/Capacitance Tolerance | ±5% (J) |
| 損耗角正切/Dissipation Factor | (tgδ) tgδ≤0.001 (at 1kHz) |
| 絕緣電阻/Insulation Resistance | Cx RS≥5000S |
| 脈沖能力/Withstand Current Ability | dv/dt > 30V/us |
| 阻燃性/Flammability | UL94V-0級 |
| 耐電壓/Withstand Voltage | 550VAC/1200VDC/10S |
| 引用標準/Reference to Standard | 符合GB/T 3984.1-2004, GB/T 14472 IEC60384-14, MLC企業(yè)標準 |
