WEH成立于1973年，一直是流體系統連接技術的優質制造商，主要致力于開發快速連接器和特殊的解決方案。其高品質和創新的快速連接器用于壓力，功能和泄露測試以及氣態介質的填充和排氣的所有重要行業，例如制造業，液壓，汽車，天然氣貨氣候和制冷等行業都可以使用。

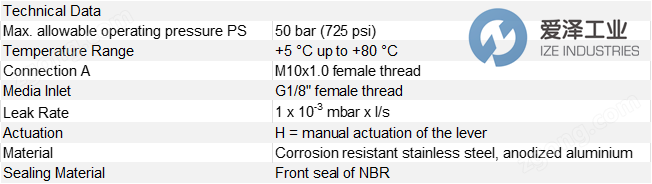

WEH連接器C1-14762技術參數

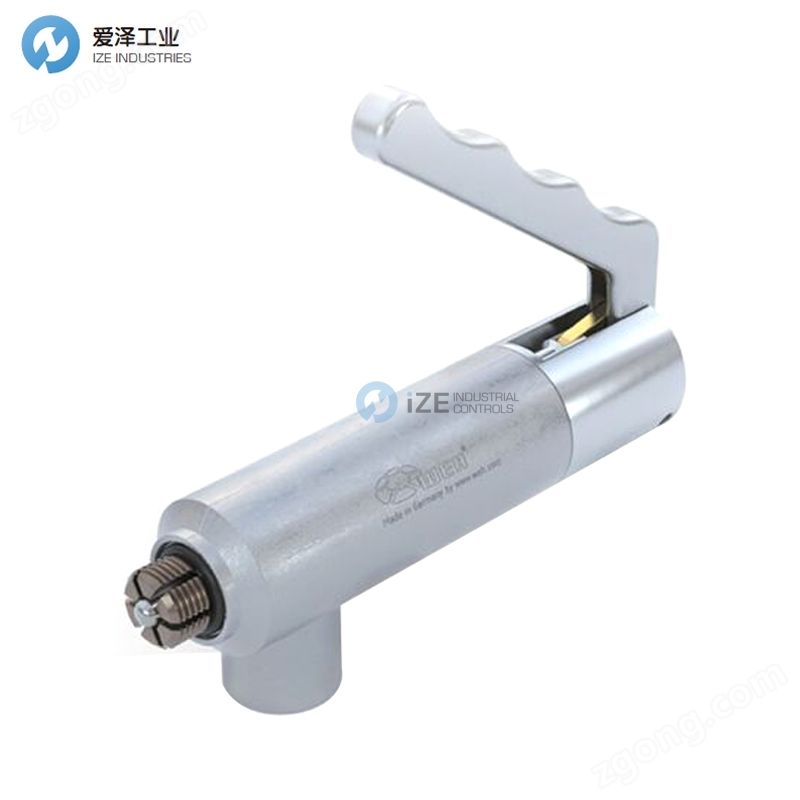

WEH連接器TW17H系列介紹
WEH® TW17H 連接器是生產過程中進行壓力、功能和真空測試的理想工具，額定壓力高達 350 bar。只需幾秒鐘即可與標準內螺紋建立安全且密封的連接，無需繁瑣的手動擰緊。
無需額外的螺紋密封劑，省去了耗時且昂貴的夾緊和測試設備。手動操作手柄非常簡單。只需操作手柄，將 TW17H 松散地放入測試件中即可。頻繁的連接和斷開操作可顯著節省時間和成本。
為了增加介質流量和提高生產效率，連接器本體尺寸 5 – 6 的夾鉗上已標配孔。
快速接頭適用于低壓（最高 50 bar）和高壓（最高 350 bar）應用。對于采用氣動執行器的自動化應用，提供帶閥門按鈕的 TW17V 型號，以及用于全自動控制系統的 TW17P 型號。
還可以提供特殊版本，例如加長版或縮短版、插頭版或液壓驅動版等。
The WEH® TW17H connector is the perfect tool for pressure, function and vacuum testing during production and rated for pressure up to max. 350 bar. The safe and pressure-tight connection to standardised female threads is established in just seconds – without tedious hand tightening.
No additional thread sealants are required, time-consuming and expensive clamping and testing devices are eliminated. The manual actuation via hand lever is very easy. Only actuate the hand lever and place the TW17H loosely into the test piece. On frequent connection and disconnection considerable time and cost savings are achieved.
Bores have been added as standard to the clamping jaws for body sizes 5 – 6 of the connector for increased media flow and enhanced productivity.
The quick connector is available for low pressure up to 50 bar and high pressure up to 350 bar. For automated applications with pneumatic actuation we offer the TW17V with valve button and the TW17P for fully automatic control systems.
Special versions such as e.g. longer or shorter versions, plug versions or versions for hydraulic actuation etc. are also possible.
WEH連接器TW17H系列其他常用型號：
WEH C1-14762
WEH C1-14770
WEH C1-14736
WEH C1-14737
WEH C1-14763
WEH C1-14766
WEH C1-14767
WEH C1-14768
WEH C1-14769
WEH C1-14771
WEH C1-14848
WEH C1-14849
WEH C1-14852
WEH C1-14853
WEH connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供制造技術和設備。代理經營世界的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的協作團隊，為客戶提供解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WEH連接器C1-14762的疑問，請隨時與我們溝通。我們將盡全力解決您的問題。
If you have any question for WEH products,Please feel free to communicate with us and we will do our best to solve your problem.
WEH連接器TW17H系列C1-14762技術參數及介紹
