PHD是工業自動化執行器的優質制造商，旨在幫助各行各業的公司優化其制造流程。產品包括全系列的氣缸，擒縱機構，抓手，線性滑軌，旋轉執行器，夾具，多動作執行器，開關和傳感器。PHD產品以其堅固性，精度和超長使用壽命而著稱，具有設計工程師要求的屬性和性能。
PHD夾具GRM1TS-6-30-30-LBB-PA3E1技術參數
PHD夾具GRM1系列介紹

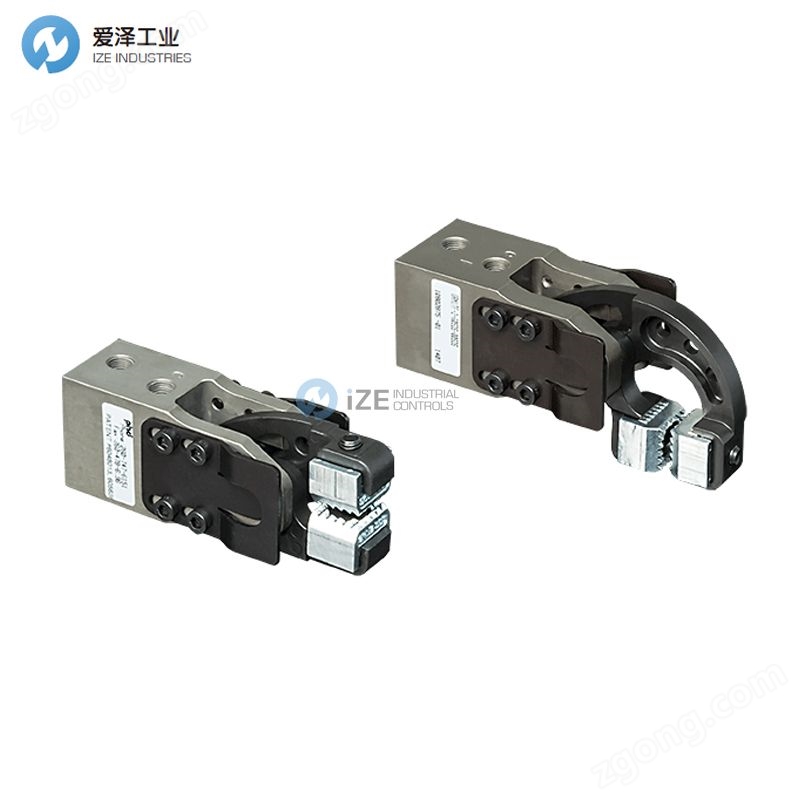

GRM1系列微型氣動工件夾具采用輕量化設計，具備高夾持力且成本競爭力強。該系列夾具提供225磅總夾持力，自重不足1磅。使用公制六角扳手可在10分鐘內完成現場維修。
經驗證的凸輪設計技術可在壓力損失時鎖定鉗口閉合狀態，緊湊外形尺寸（45mm×45mm×120mm）適用于狹窄工作空間或機器人末端執行器應用，具備高夾持力與重量比，兼容所有GRM2標準夾頭，四種標準鉗口開合設計提供靈活配置方案。
GRM1 系列采用緊湊的外形尺寸，并具備夾緊力，最大總夾緊力可達 225 磅 [1000 牛頓]，使其在同類產品中擁有最佳的夾緊力與價格比。
設計簡潔、使用壽命長、夾緊力大，且可使用公制六角扳手在10分鐘內完成現場維修。
四個鉗口開口設計，確保設計靈活性。若氣壓丟失，鉗口將鎖定在閉合位置，確保工件不會脫落。
采用聚合物密封件，確保使用壽命長；采用硬質涂層鋁制部件，增強耐磨性?？苫Q的淬火鋼夾口既能最大限度地減少昂貴的庫存，又能最大限度地提高耐磨性，從而延長使用壽命。
可調節的淬火鋼緩沖板可防止部件撞擊導致機身受損。開關安裝選項最多可提供四種檢測功能。
The GRM1 series of miniature pneumatic workpiece clamps features a lightweight design, high clamping force, and competitive cost. This series offers a total clamping force of 225 psi while weighing less than 1 psi. Field repairs can be completed in 10 minutes using a metric hex wrench.
Proven cam design technology locks the jaws closed in the event of pressure loss. Its compact size (45mm × 45mm × 120mm) makes it suitable for confined workspaces or robotic end effector applications, offering a high clamping force-to-weight ratio. It is compatible with all GRM2 standard chucks, and four standard jaw opening designs provide flexible configuration options.
The GRM1 series' compact size and powerful clamping force, with a maximum total clamping force of 225 psi [1000 Nm], give it the best clamping force-to-price ratio in its class.
Simple design, long service life, high clamping force, and field repairs completed in 10 minutes using a metric hex wrench.
The four jaw opening design ensures design flexibility. If air pressure is lost, the jaws will lock in the closed position to prevent workpiece from falling out.
Polymer seals ensure long service life; hard-coated aluminum components enhance wear resistance. Interchangeable hardened steel jaws minimize costly inventory and maximize wear resistance, thus extending service life.
An adjustable hardened steel buffer plate prevents damage to the machine body from component impacts. Switch mounting options provide up to four detection functions.

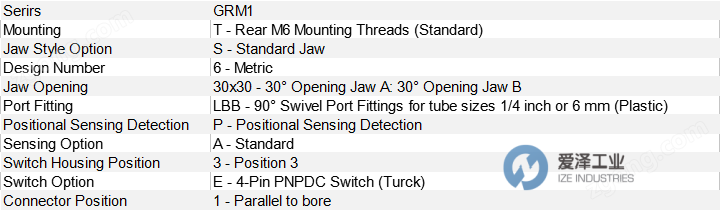

PHD夾具GRM1系列選型
PHD夾具GRM系列其他常用型號：
PHD GRM1TS-6-30 SDB-00-SDB-LBB
PHD GRM1TS-2-30 SDB-05-SDB-LAA
PHD GRM1SS-2-50 SDB-50SDB-LAA-B11
PHD GRM1TS-2-50
PHD GRM1TS-6-30-30-LBB-PA3E1
PHD GRM1TS-6-50-30-LBB-SSSNP
PHD GRM4TG-6-40-40
PHD clamps NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供制造技術和設備。代理經營世界的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PHD夾具GRM1TS-6-30-30-LBB-PA3E1的疑問，請隨時與我們溝通。我們將盡全力解決您的問題。
If you have any question for PHD products, Please feel free to communicate with us and we will do our best to solve your problem.
PHD夾具GRM系列GRM1TS-6-30-30-LBB-PA3E1技術參數及介紹
