NEXON一直致力于開發流體測量技術并為各種應用提供過程控制解決方案，NEXON提供業內廣泛應用的傳感器，變送器和開關。

主要經營產品有：

NEXON流量計

NEXON壓力開關

NEXON液位開關

NEXON溫度變送器

NEXON溫度計

NEXON流量計FMI300-Mini系列技術參數

NEXON流量計FMI300-Mini系列介紹

FMI300-Mini 電磁流量計

依據法拉第電磁感應定律：當導體垂直通過磁場 B 時，會感應出電動勢 U。在流量計的測量中，運動的導體為流動的導電介質，磁場 B 垂直于流動介質方向。位于兩電極 E1 與 E2 間的感應電動勢 U 與介質的速度 V 成正比。

U = K × B × V × D

K — 儀表常數

D — 內部探頭間距

感應電動勢 U 經進一步處理后被轉換為標準電信號以輸出或顯示。

應用

循環水檢測

冷卻液監測

其他導電液體監測

FMI300-Mini electromagnetic flow meters

According to Faraday's principle of electromagnetic induction when a conductor passes vertically through magnetic field B, it will induce a voltage. U In the measurement of the flowmeter, the moving conductor is a flowing conducting medium, and the magnetic field B is emitted from the direction perpendicular to the flowing medium. The induced electromotive force U on the two electrodes E1 and E2 is directly proportional to the velocity V of the medium. U=K×B×V×D K-meter constant D-Internal probe spacing The induced electromotive force U is further processed and converted into a standard electrical signal for output or display

Applications

Circulating water detection

Coolant monitoring

Other conducting liquid monitoring

NEXON流量計FMI300-Mini系列其他常用型號：

NEXON ELECTRONIC FMI300GM10XX01

NEXON ELECTRONIC FMI300GM06

NEXON ELECTRONIC FMI300GM10

NEXON ELECTRONIC FMI300GM15

NEXON ELECTRONIC FMI300TR106

NEXON ELECTRONIC FMI300TR110

NEXON ELECTRONIC FMI300TR215

NEXON High-precision turbine flowmeter NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的協作團隊，為客戶提供解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于NEXON流量計FMI300GM10XX01的疑問，請隨時與我們溝通。我們將盡全力解決您的問題。

If you have any question for NEXON products, Please feel free to communicate with us and we will do our best to solve your problem.

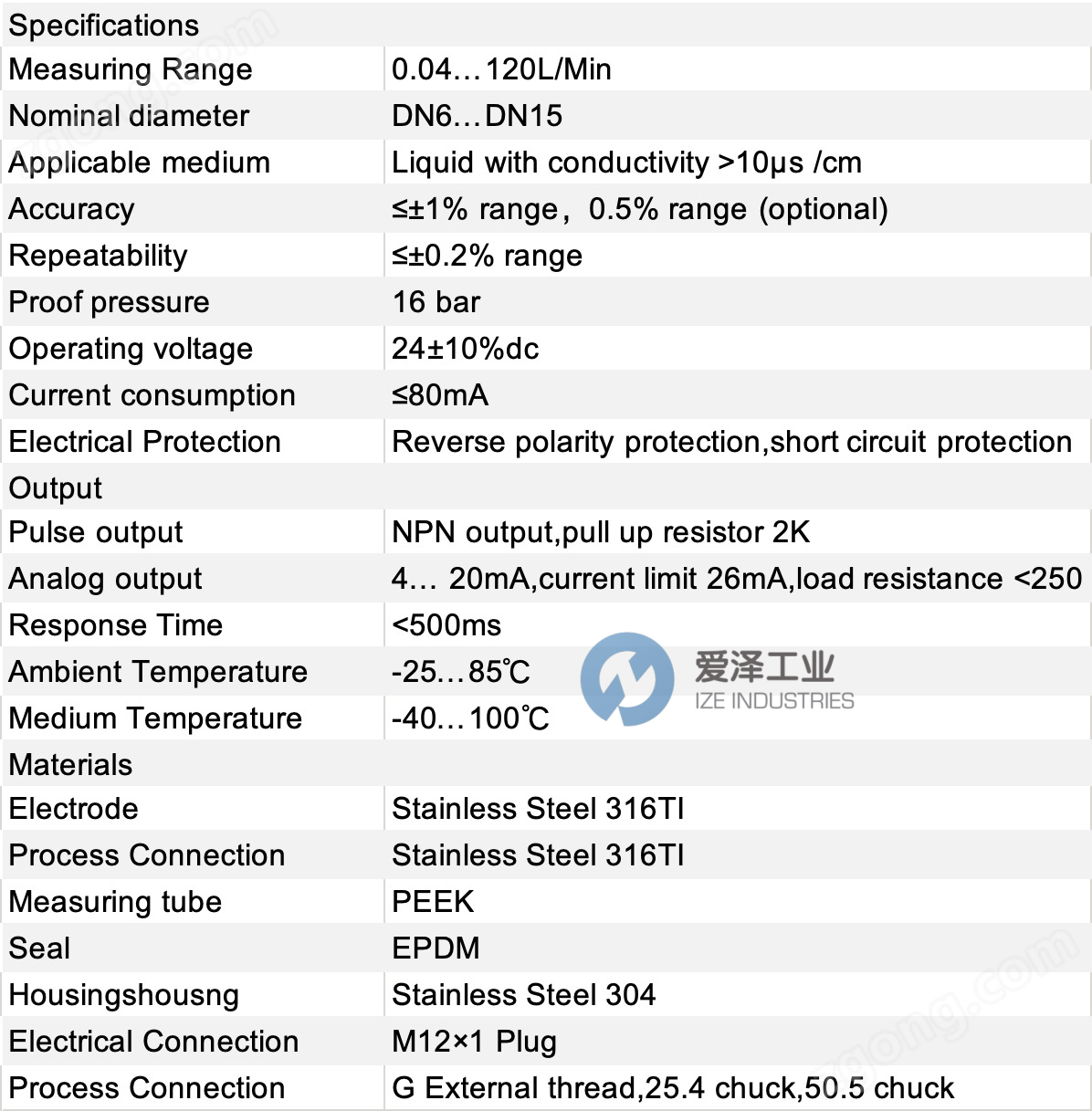

NEXON流量計FMI300-Mini系列FMI300GM10XX01技術參數介紹
