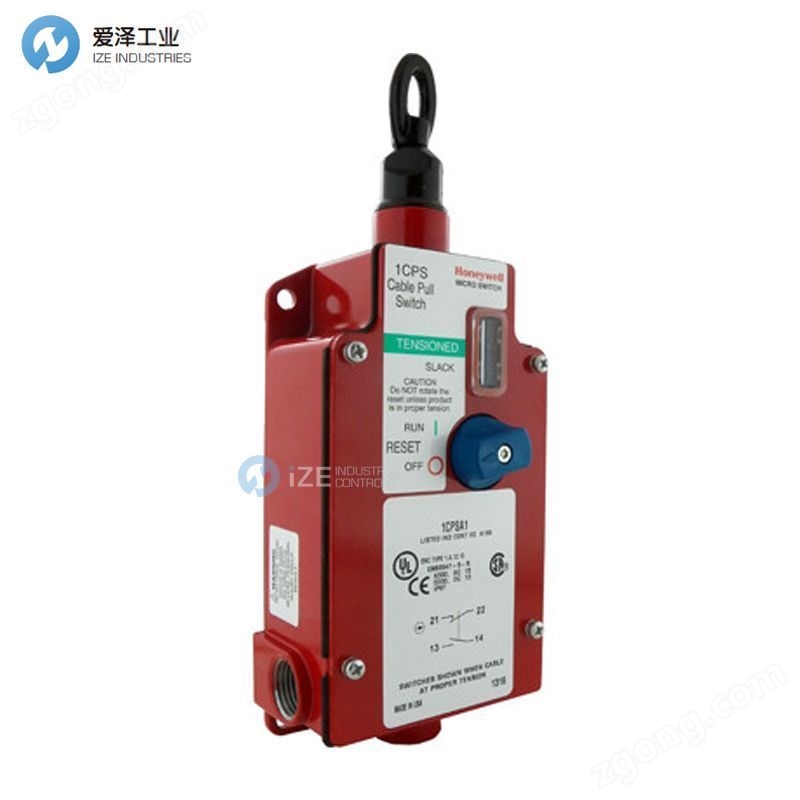

HONEYWELL拉繩開關1CPSC2A技術參數

開關類型：1CPS 系列 單頭 拉繩安全開關

導管：C 20 mm

基本開關代號：

2

2常開/2常閉 直動型

開關1：1常開/1常閉

開關2：1常開/1常閉

指示燈/信號燈代號：A 24 Vdc LED

Switch Type：1CPS Series Single-Head Cable-Pull Safety Switch

Conduit：C 20 mm

Basic Switch Code：

2

2NO/2NC direct acting

Switch 1: 1NO/1NC

Switch 2: 1NO/1NC

Indicator-Pilot Light Code：A 24 Vdc LED

HONEYWELL拉繩開關CPS系列介紹

描述：

MICRO SWITCH CPS 系列拉繩安全開關可提供易于接近的緊急停止信號，是比多個緊急停止按鈕更具成本效益的方案。CPS 系列的內部機構在拉繩被拉緊（拉動）或松弛（推壓）時均能閉鎖。

1CPS 適用于拉繩跨度不超過 76 m（250 ft）的場合，經濟適用于較短的防護區或自動化系統的區域防護。2CPS 系列適用于最長 152 m（500 ft）以內的長距離拉繩，例如倉庫中的長輸送線。

在拉繩張力窗口中點有一條標線用于指示適當?shù)睦K張力，便于設置。當執行拉繩處于適當張力且復位旋鈕置于 RUN（運行）位置時，直接開斷型開關觸點被保持閉合。若拉繩被拉動、松弛或斷開，凸輪會正向打開常閉（NC）觸點。觸點的瞬跳動作使其在拉繩被拉動、松弛或斷開時幾乎同時改變狀態并機械閉鎖。常閉觸點在正確張緊拉繩并手動旋轉復位旋鈕復位之前保持?jǐn)嚅_(kāi)。

DESCRIPTION

MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, a cost-effective means compared to using multiple emergency stop push-buttons. The CPS Series Cable Pull Safety Switch’s internal mechanism latches on both slackened cable (push) and pulled cable.

The 1CPS is intended for use in applications where the cable span is 76 m [250 ft] or shorter. It is an economical solution for shorter runs or zone protection typical to automated systems. The 2CPS Series is intended for use in very long cable runs of 152 m [500 ft] or shorter, such as long conveyor lines found in warehouses.

A line in the midpoint of the cable tension window indicates proper cable tension, providing easy set-up. The direct opening switch contacts are held closed when the actuating cable is under proper tension and the reset knob is set to the RUN position. When the actuating cable is pulled, slackened, or broken, a cam positively opens the NC (Normally Closed) switch contacts. The snap-action operation causes the switch contacts to change state and mechanically latch almost simultaneously when the cable is pulled, slackened, or broken. The NC switch contacts remain open until the CPS is reset by properly tensioning the cable and manually rotating the reset knob.

HONEYWELL拉繩開關CPS系列其他常用型號：

HONEYWELL 1CPSC2A

HONEYWELL 1CPSA1

HONEYWELL 1CPSA1A

HONEYWELL 1CPSA1B

HONEYWELL 1CPSA5

HONEYWELL 1CPSC1

HONEYWELL 1CPSC1A

HONEYWELL 1CPSC5

HONEYWELL 1CPSA2

HONEYWELL 1CPSA2B

HONEYWELL 1CPSA6

HONEYWELL 1CPSA6A

HONEYWELL Pull-cord switch NEW + ORIGINAL+ ONE YEAR WARRANTY
