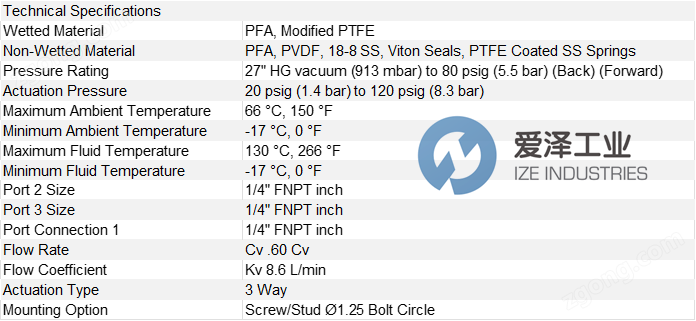

PARKER閥PV-10-1344-02技術參數

PARKER閥PV-10系列介紹

PV-10系列是一款1/4英寸氣動（AOP）PFA隔膜閥，專為高純度（UHP）和腐蝕性氣體及液體處理系統而設計，包括半導體制造和潔凈區應用。該系列閥門提供二通和三通兩種配置，采用模壓PFA閥體，并經精密加工的密封區域確保密封性和耐化學腐蝕性。

PV-10系列配備一體式改性PTFE隔膜，具有優異的柔韌性和長循環壽命，從而降低更換成本和減少停機時間。此外，該閥門還采用氟聚合物涂層不銹鋼彈簧，可降低腐蝕性環境的影響，并兼容多種工藝介質。根據客戶需求，PV-10系列閥門可配備多種端口配置，包括Parflare和Pargrip管接頭。這些接頭可縮短組裝和安裝時間，同時確保密封嚴密，滿足潔凈度要求高的應用需求。

PV-10系列PFA閥采用精密設計，有效控制閥座和隔膜應力，確?？煽壳颐饩S護的使用壽命。其榫槽結構保證隔膜與閥體之間形成牢固的密封，減少顆粒夾雜，并將工藝介質與執行器隔離。該閥采用全尺寸1/4英寸孔徑，無任何阻力，可在高達80 psig的工作壓力下，以緊湊的結構實現流量。流量范圍為0.20至0.62，具體取決于端口尺寸和配置。

PV-10系列執行器可在低至20 psi的壓力下工作，便于安裝和維護。

The PV-10 Series is 1/4 inch air-operated (AOP) PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including semiconductor manufacturing and clean-area applications. The valves is available in 2-way and 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

The PV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacements costs and less downtime. The valve also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, PV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

The PV-10 Series PFA valve’s exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media from the actuator. The valve features a full 1/4 inch orifice with no restrictions for maximum flow in a compact package at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.

The actuator in the PV-10 Series works on as little as 20 psi for ease of installation and maintenance.

PARKER閥PV-10系列其他常用型號：

PARKER PV-10-1344-02

PARKER PV-10-1344-00

PARKER PV-10-1344-00-SB

PARKER PV-10-1344-01

PARKER PV-10-1344-10

PARKER PV-10-2334-00

PARKER PV-10-2334-01

PARKER PV-10-2334-02

PARKER PV-10-2334-10

PARKER PV-10-2346-00

PARKER PV-10-2346-01

PARKER PV-10-2346-02

PARKER PV-10-2346-10

PARKER PV-10-6324-00

PARKER PV-10-6324-00-T

PARKER valve NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供制造技術和設備。代理經營世界的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于PARKER閥PV-10-1344-02的疑問，請隨時與我們溝通。我們將盡全力解決您的問題。

If you have any question for PARKER products, Please feel free to communicate with us and we will do our best to solve your problem.
